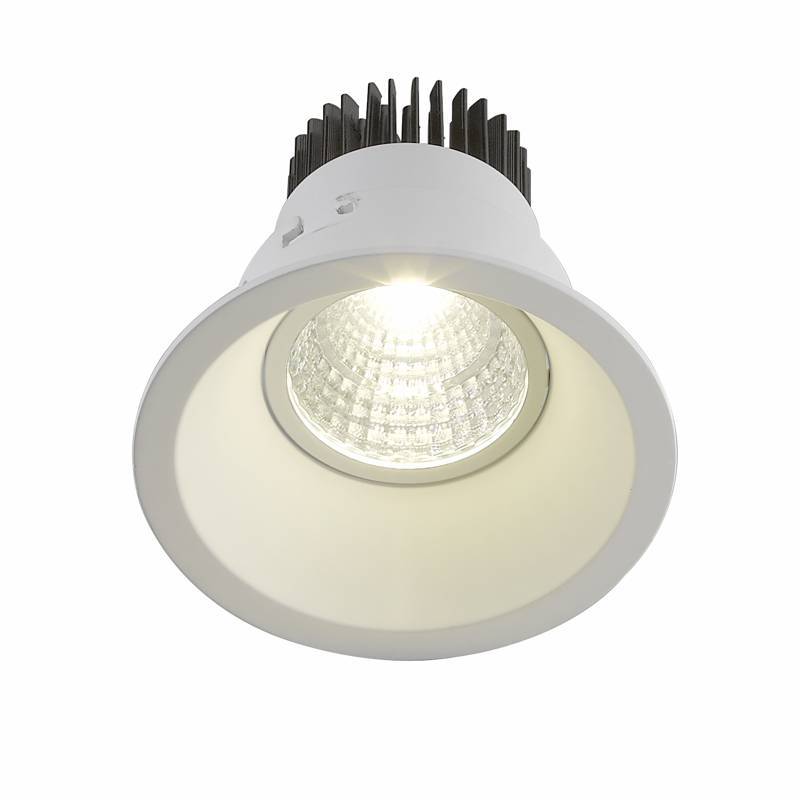

ILL-SL18

Spotlight

Short Description

The ILL-SL18 Spot Light Anti-Glare series is a high-performance lighting solution that provides focused illumination while minimizing glare. Ideal for both commercial and residential spaces, this spotlight ensures optimal lighting for display, accent, or task lighting without compromising visual comfort. Built with high-quality materials that ensure durability and longevity, suitable for  indoor  applications.

GENERAL INFORMATIONS

Model No. ILL-SL0XX18 Series

Product Family-Spot Light

Application Area-Indoor

Material and Finish (Body)-Die -Cast Aluminum, White,Black

Material and Finish (Reflector)-Not Applicable

IP Level-IP20/44

Working temperature--20°C~50°C

Working hour-50000 Hrs

ELECTRICAL PARAMETERS

Input voltage-120-270 VAC, 50/60 Hz

Power-6W,9W,12W,15W,20W,30W

Control Type-On/ Off , Dimmable

OPTICAL PARAMETERS

Light Source-LED COB

Colour Temperature (CCT)-2700K - 6500K

Colour Rendering Index (CRI)->80,>90

Beam Angle-15°, 24°, 36°,60°

Luminous output-100lm/W ( ± 5 %)

WARRANTY

5 years Warranty

CERTIFICATES

CE,TUV

Specification

ILL-SL00618
:

6W-600lm-Ø85*H91-Ø75

ILL-SL00918
:

9W-900lm-Ø105*H91-Ø95

ILL-SL01218
:

12W-1200lm-Ø105*H111-Ø95

ILL-SL01518
:

15W-1500lm-Ø125*H117-Ø115

ILL-SL02018
:

20W-2000lm-Ø145*H141-Ø135

ILL-SL03018
:

30W-3000lm-Ø160*H140 -Ø150
