ILL-SL01

Short Description

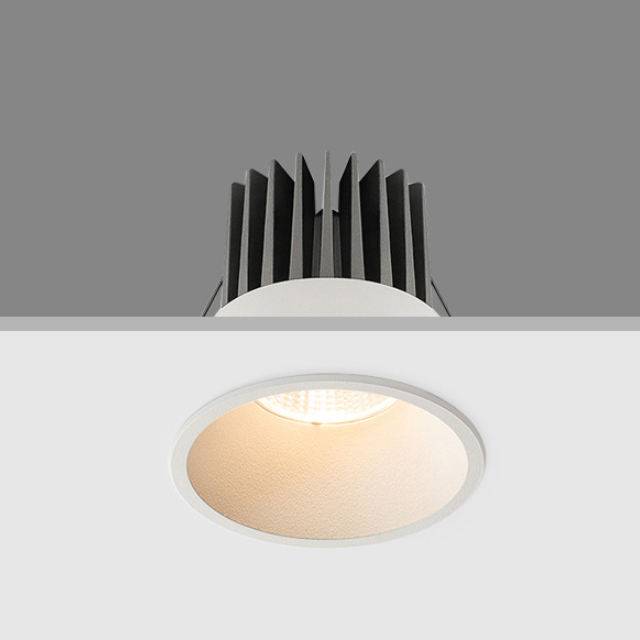

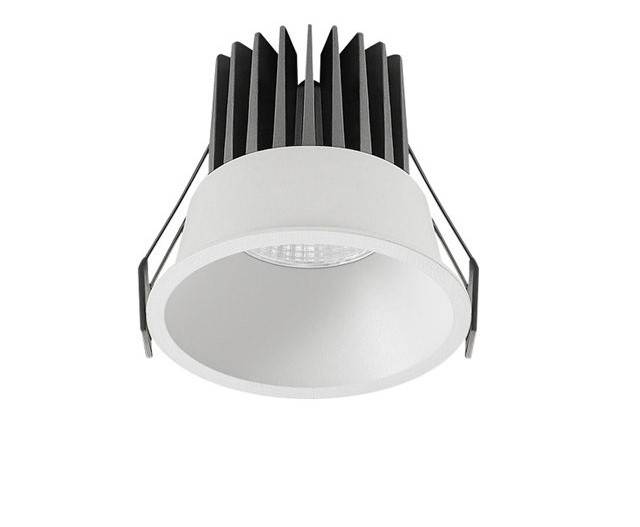

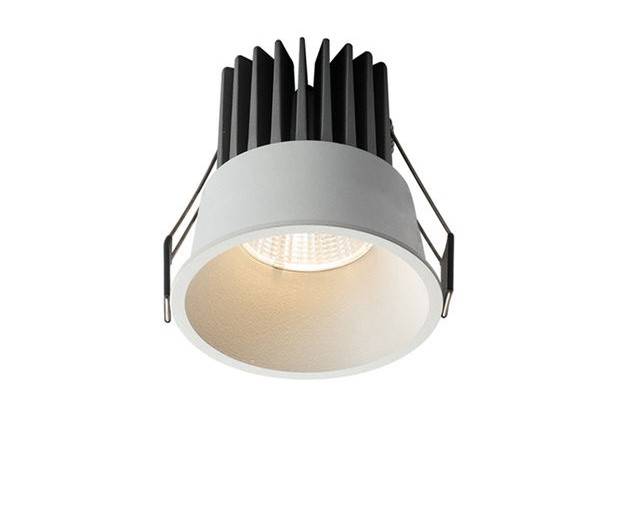

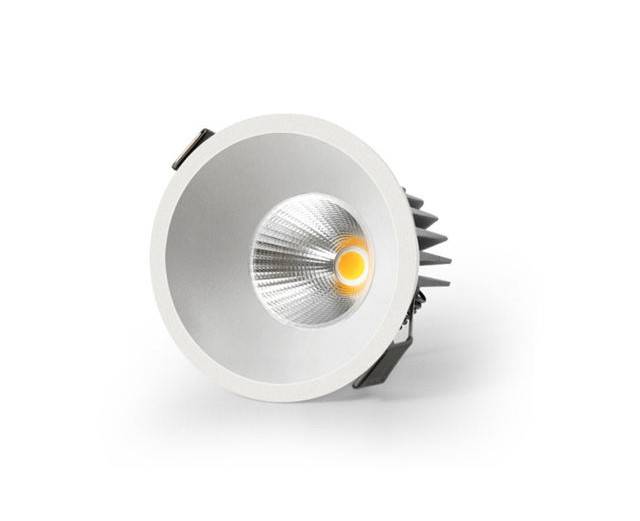

The SL01 spotlight family offers a wide range of options for anyone looking for reliable, efficient, and aesthetically appealing lighting solutions. Whether for residential, commercial, or industrial applications, the use of die-cast aluminum ensures that these lights are durable, efficient, and well-suited to a variety of environments. With their ability to provide adjustable or fixed lighting, as well as features like smart technology or impact resistance, die-cast spotlights are versatile and offer a high level of functionality and design for any project.


GENERAL INFORMATIONS

Model No. ILL-SL0XX01 Series

Product Family-Spot Light

Application Area-Indoor

Material and Finish (Body)-Die -Cast Aluminum, White,Black

Material and Finish (Reflector)-Not Applicable

IP Level-IP20/44

Working temperature--20°C~50°C

Working hour-50000 Hrs

ELECTRICAL PARAMETERS

Input voltage-120-270 VAC, 50/60 Hz

Power-7W,10W,12W

Control Type-On/ Off , Dimmable

OPTICAL PARAMETERS

Light Source-LED COB

Colour Temperature (CCT)-2700K - 6500K

Colour Rendering Index (CRI)->80,>90

Beam Angle-15°, 24°, 36°

Luminous output-80lm/W ( ± 5 %)

WARRANTY

5 years Warranty

CERTIFICATES

CE





Specification

ILL-SL07001
:

7W -560 lm -Ø62xH65 -Ø55

ILL-SL10001
:

10W- 800 lm- Ø72xH77 -Ø65

ILL-SL12001
:

12W- 960 lm -Ø82xH80- Ø75
