ILL-L242S-F
Short Description

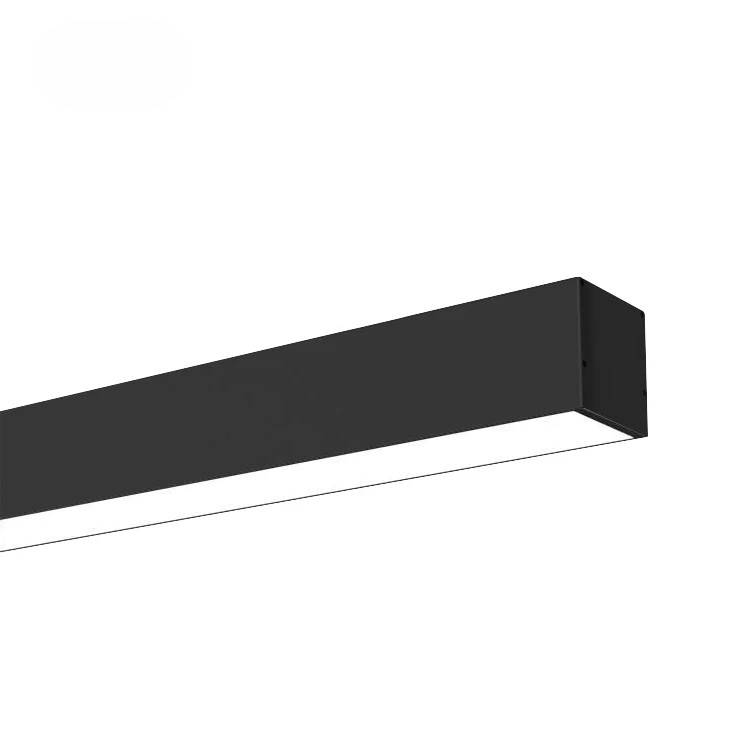

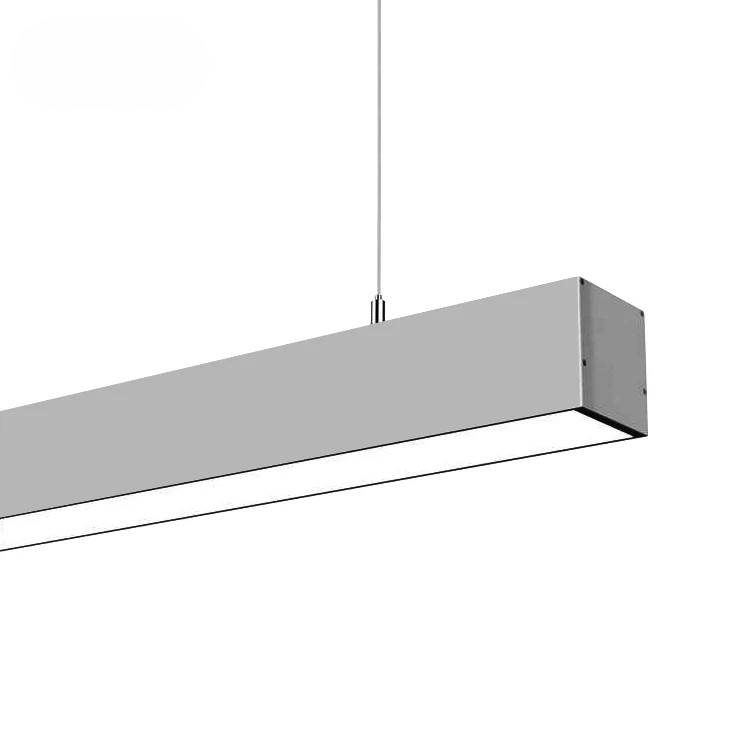

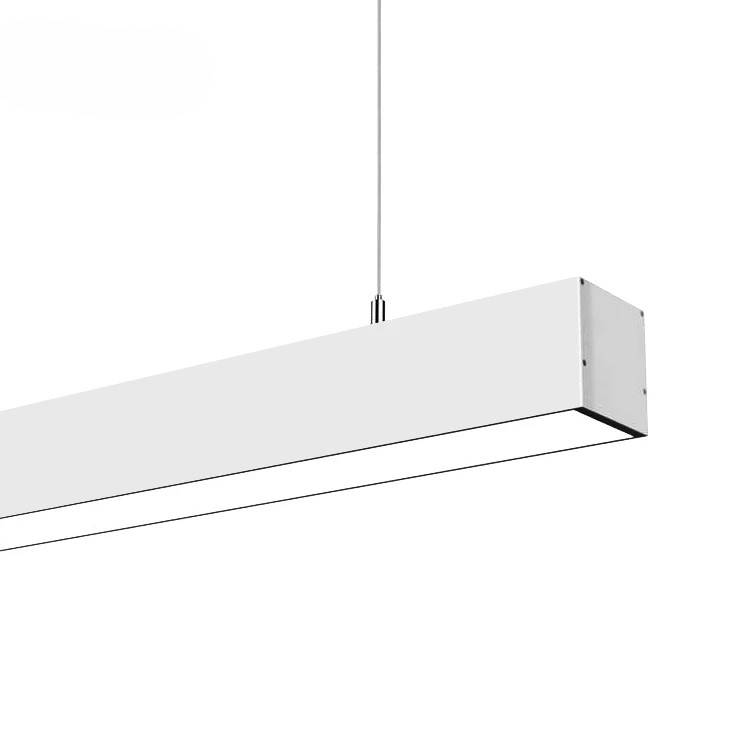

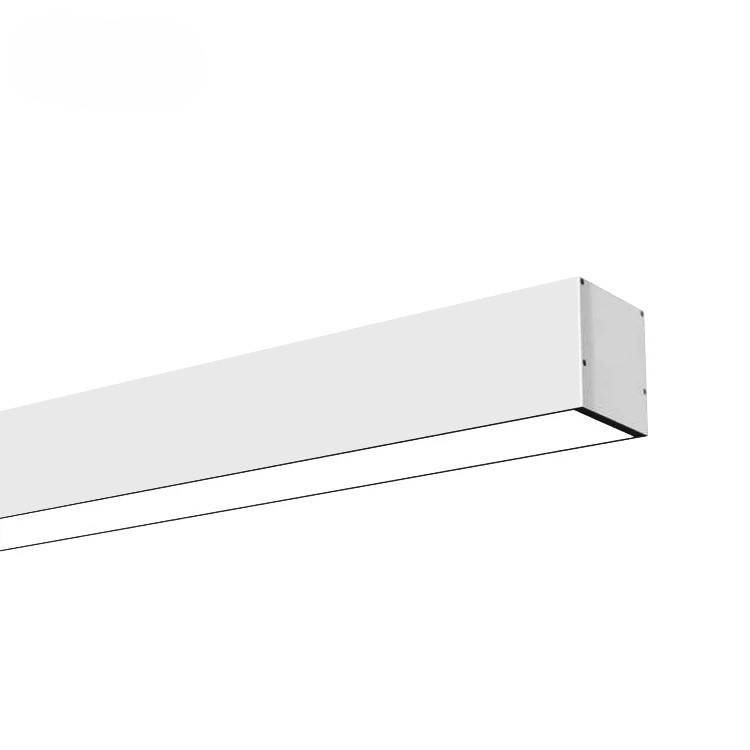

The ILL-L242S-XXXF Linear Light is a sleek and modern lighting solution designed to provide efficient, high-quality illumination for both residential and commercial environments. Engineered for versatility, this linear light fixture is perfect for applications requiring continuous, even lighting with a minimalistic design. Its precision-engineered LED technology ensures long-lasting performance, energy efficiency, and consistent light output.
GENERAL INFORMATIONS
Model No- ILL-L242S-XXXF Series
Application Area-Indoor
Product Family-Linear Light
Material and Finish (Body)-Extruded Aluminium, White,Black.
IP Level-IP20
Working temperature- -20°C~50°C
Working hours-50000 Hrs
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz
Power-12W,20W,36W,48W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED SMD
Colour Temperature (CCT)-2700K - 6500K
Colour Rendering Index (CRI) ->80,>90
Beam Angle-120°
Luminous output-100lm/W ( ± 5 %)
WARRANTY
5 years Warranty
CERTIFICATES
CE , LCS
Specification
ILL-L242S-125F
:12W-1200lm-L1200*W35*H70
ILL-L242S-205F
:20W-2000lm-L1200*W35*H70
ILL-L242S-364F
:36W-3600lm-L1200*W50*H70
ILL-L242S-484F
:48W-4800lm-L1200*W75*H75
