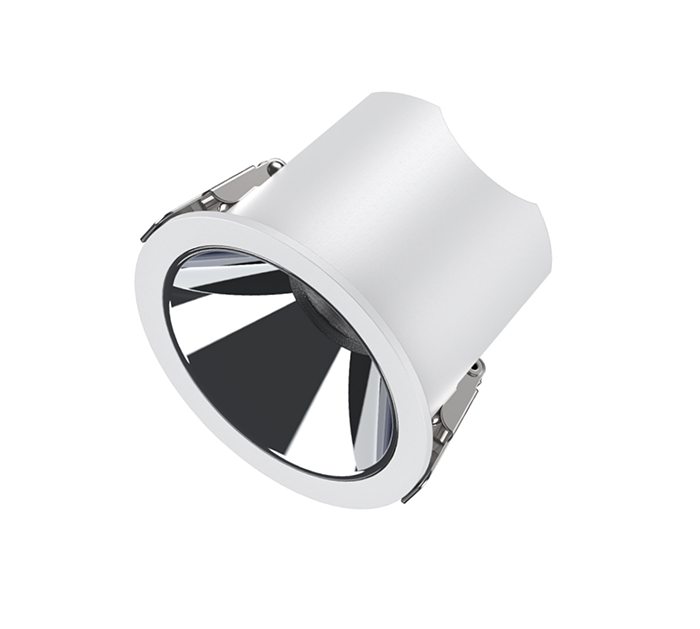

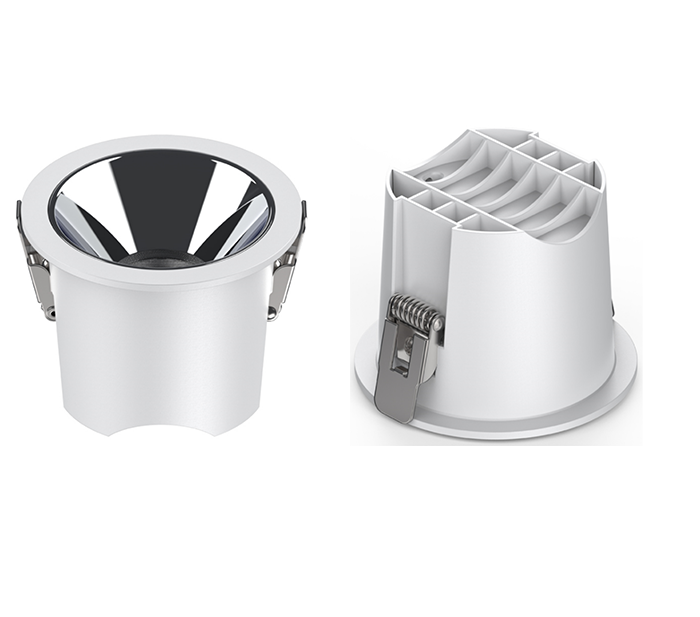

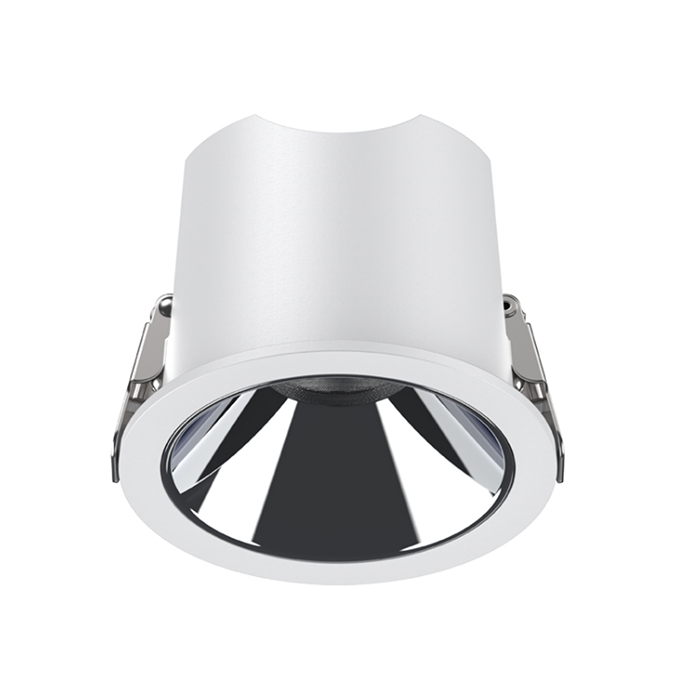

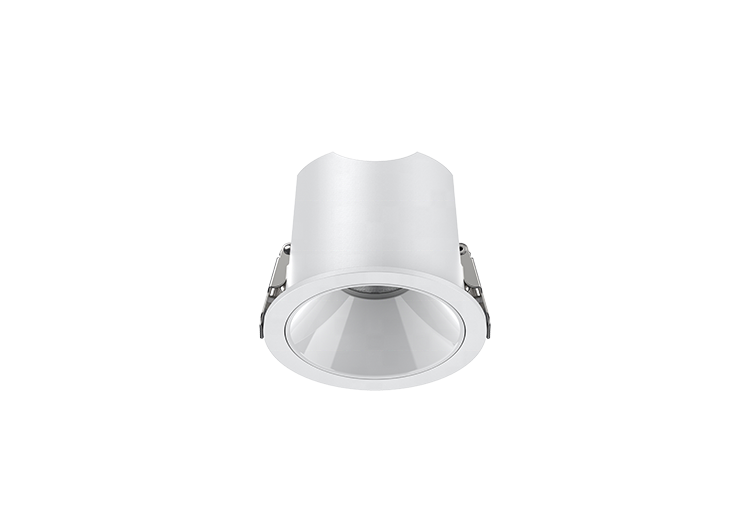

ILL-SL04

Short Description

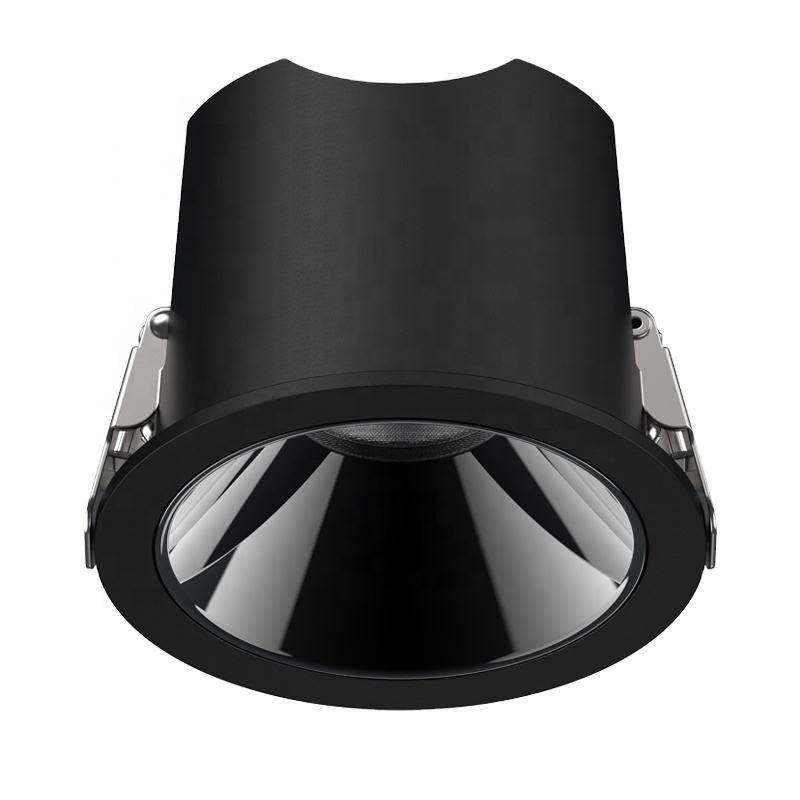

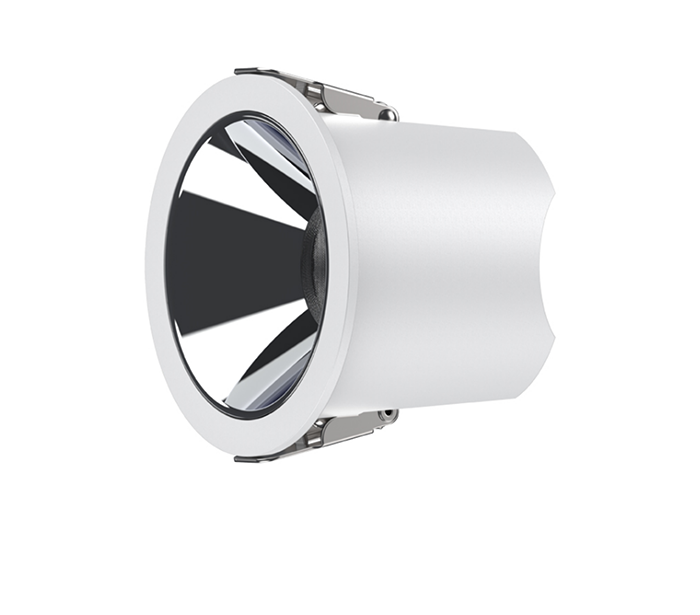

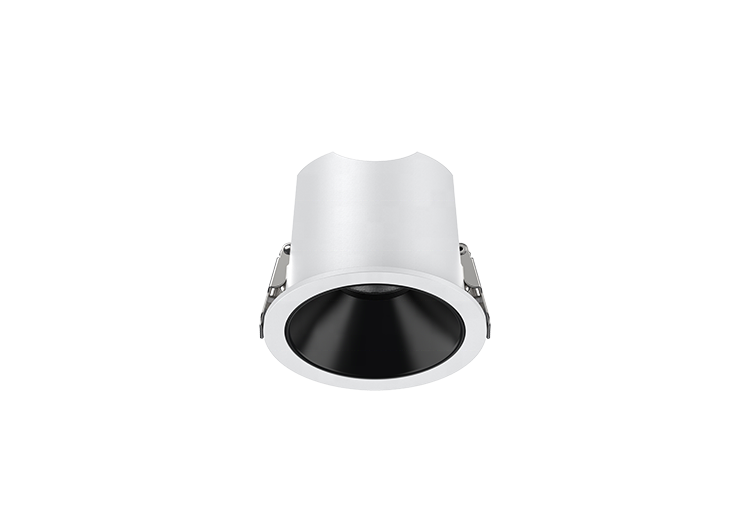

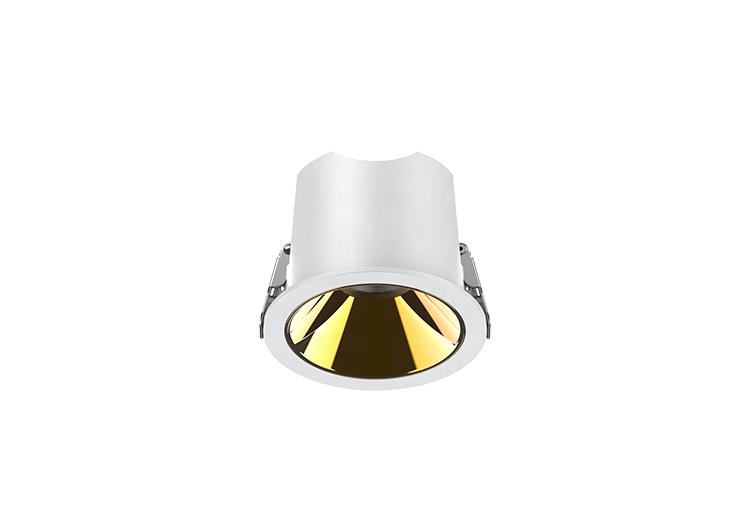

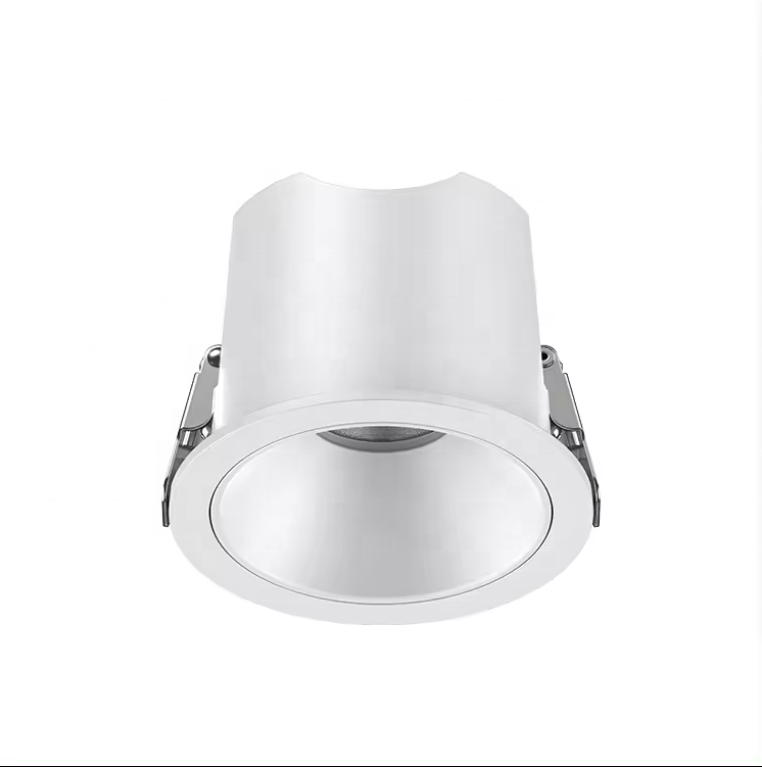

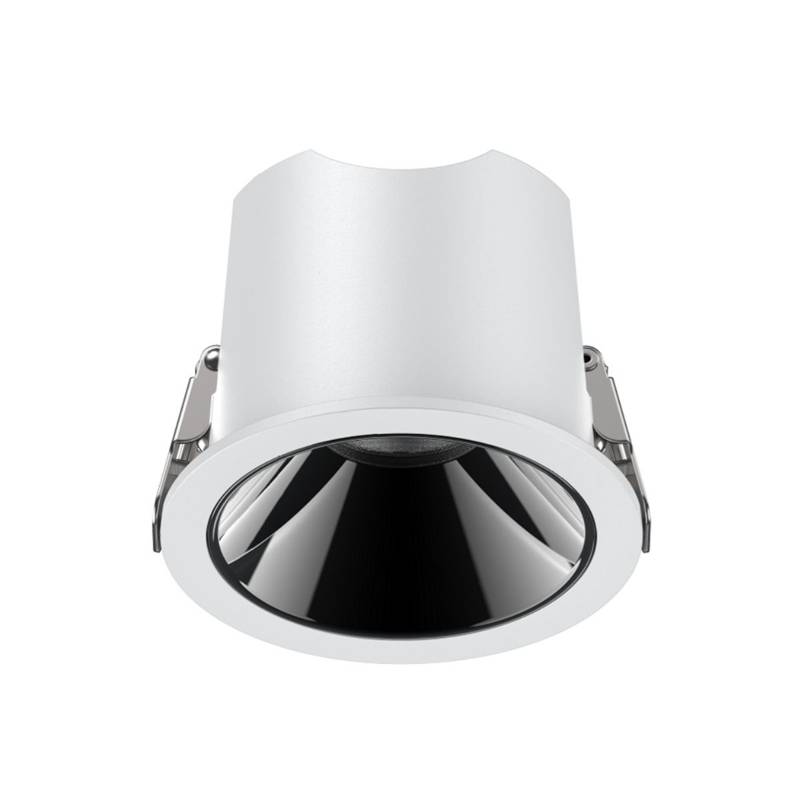

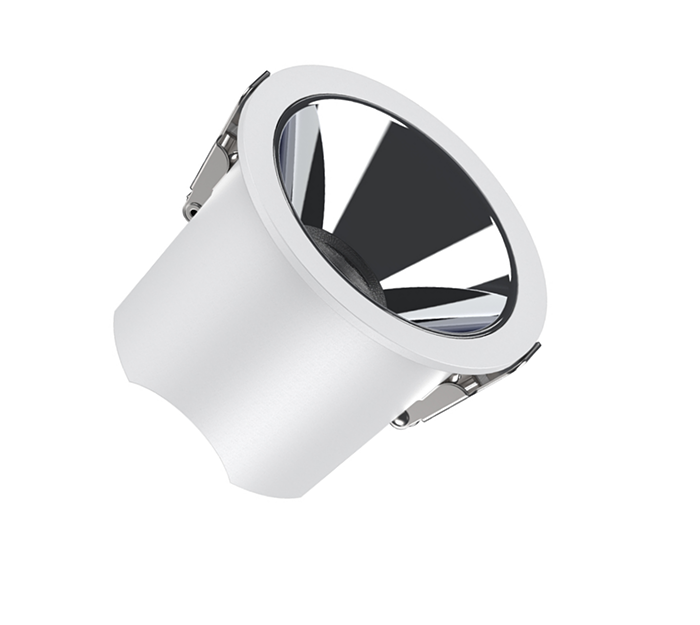

The ILL-SL04 COB Deep Antiglare fixed Spotlight is a cutting-edge lighting solution designed to deliver powerful and focused illumination with exceptional energy efficiency. Utilizing Chip-on-Board (COB) LED technology, this spotlight provides a high-quality light source, perfect for accent, task, or display lighting in both commercial and residential settings. With its modern design, superior brightness, and long lifespan, the ILL-SL04 COB Spotlight is ideal for spaces that require precise, bright lighting.

GENERAL INFORMATIONS

Model No. ILL-SL0XX04 Series

Product Family-Spot Light

Application Area-Indoor

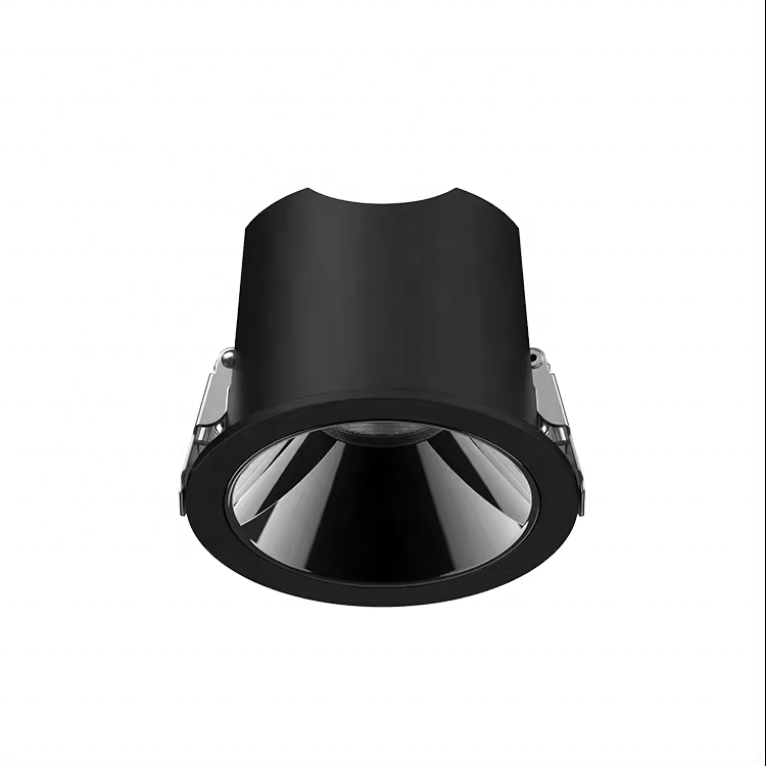

Material and Finish (Body)-Die -Cast Aluminum, White, Black

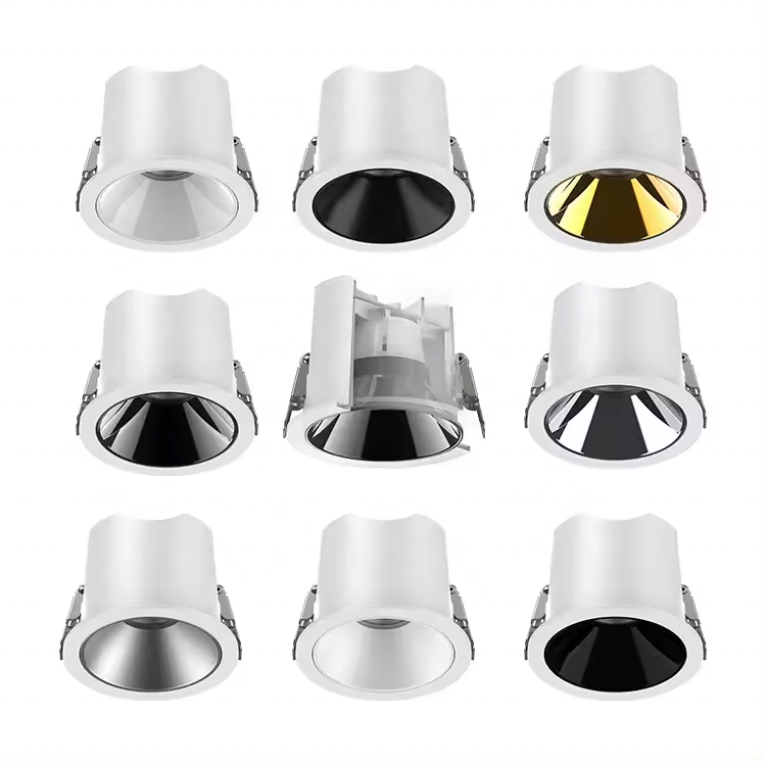

Material and Finish (Reflector)-Silver, White, Black

IP Level-IP20

Working temperature- -20°C~50°C

Working hour-50000 Hrs

ELECTRICAL PARAMETERS

Input voltage-120-270 VAC, 50/60 Hz

Power-7W,10W,18W

Control Type-On/ Off , Dimmable

OPTICAL PARAMETERS

Light Source-LED COB

Colour Temperature (CCT)-2700K - 6500K

Colour Rendering Index (CRI)->80,>90

Beam Angle-15°, 24°, 36°,60°

Luminous output-100lm/W ( ± 5 %)

WARRANTY

5 years Warranty

CERTIFICATES

CE

Specification

ILL-SL00704
:

7W-630lm-Ø63*H52-Ø55

ILL-SL01004
:

10W-900lm- Ø85*H64-Ø75

ILL-SL01804
:

18W-1620lm-Ø102*H74-Ø90
